型號(hào)：R1A-KHxxxx
D218.5*W106*H41.5mm
產(chǎn)品規(guī)格
-
Efficiency (效率)
>92% at typical load at 230Vac input
-
Power Good Signal
On delay 100mS to 500mS
-
Hold Time
16mS minimum at 115Vac input and 80% full load
-
Rise Time
20mS maximum at 115Vac full load
-
Output Protection
SCP,OPP,OCP,OVP,OTP
-
Operating
0℃~50℃
-
Storage
-40℃~70℃
- The power supply meet EN60950,EMC,EMI Class B level
- Power Range

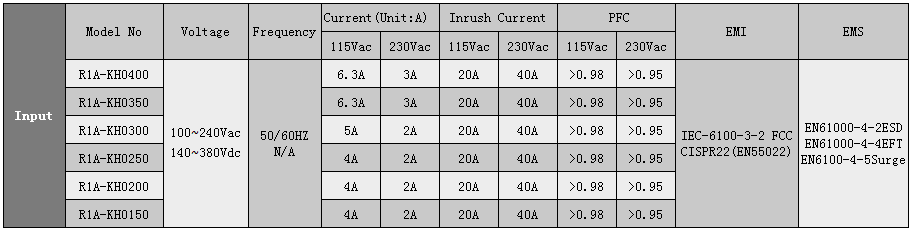

- Input Condition

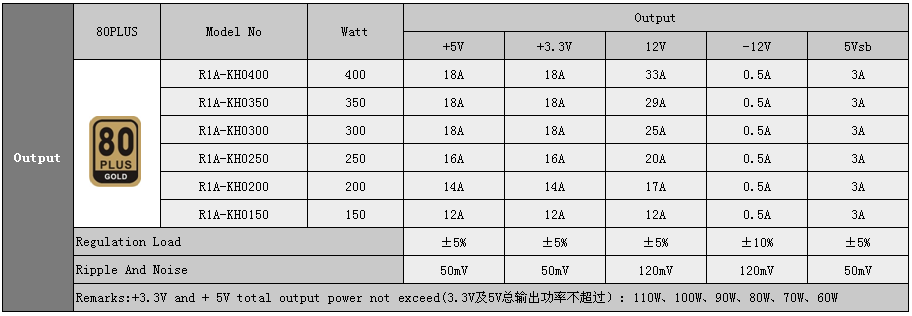

- Output Range
